zookeeper源码学习-QuorumPeerMain

整个项目的启动入口

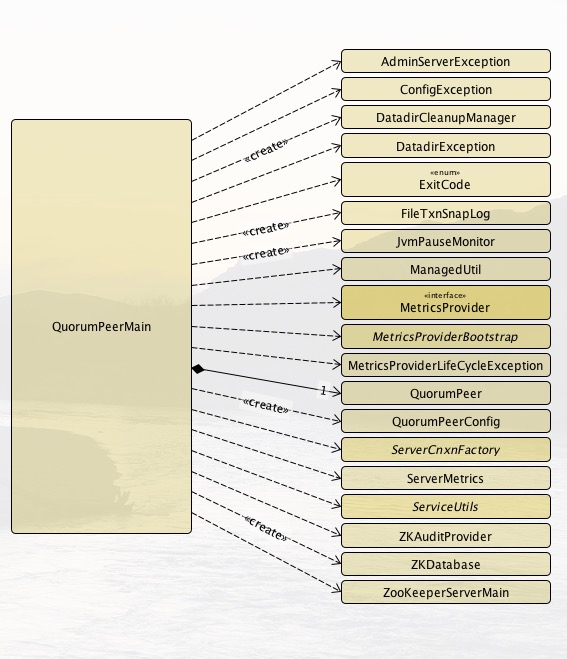

关系图

https://iotxing-1253163150.cos.ap-shanghai.myqcloud.com/ZK/QuorumPeerMain.jpg

initializeAndRun

main的主要内容,用于初始化配置,启动清除线程,run server

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
protected void initializeAndRun(String[] args) throws ConfigException, IOException, AdminServerException {
QuorumPeerConfig config = new QuorumPeerConfig(); //读取节点的配置
if (args.length == 1) {
config.parse(args[0]);
}

// Start and schedule the the purge task
DatadirCleanupManager purgeMgr = new DatadirCleanupManager(
config.getDataDir(),
config.getDataLogDir(),
config.getSnapRetainCount(),
config.getPurgeInterval());
purgeMgr.start();

if (args.length == 1 && config.isDistributed()) {
runFromConfig(config);
} else {
LOG.warn("Either no config or no quorum defined in config, running in standalone mode");
// there is only server in the quorum -- run as standalone
ZooKeeperServerMain.main(args);
}
}

runFromConfig

如果是分布式部署的话,会通过该函数进行节点的启动。如果是单节点的话,是通过ZooKeeperServerMain.main(args)的方式启动

所有代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
public class QuorumPeerMain {

private static final Logger LOG = LoggerFactory.getLogger(QuorumPeerMain.class);

private static final String USAGE = "Usage: QuorumPeerMain configfile";

protected QuorumPeer quorumPeer;

/**
* To start the replicated server specify the configuration file name on
* the command line.
* @param args path to the configfile
*/
public static void main(String[] args) {
QuorumPeerMain main = new QuorumPeerMain();
try {
main.initializeAndRun(args);
} catch (IllegalArgumentException e) {
LOG.error("Invalid arguments, exiting abnormally", e);
LOG.info(USAGE);
System.err.println(USAGE);
ZKAuditProvider.addServerStartFailureAuditLog();
ServiceUtils.requestSystemExit(ExitCode.INVALID_INVOCATION.getValue());
} catch (ConfigException e) {
LOG.error("Invalid config, exiting abnormally", e);
System.err.println("Invalid config, exiting abnormally");
ZKAuditProvider.addServerStartFailureAuditLog();
ServiceUtils.requestSystemExit(ExitCode.INVALID_INVOCATION.getValue());
} catch (DatadirException e) {
LOG.error("Unable to access datadir, exiting abnormally", e);
System.err.println("Unable to access datadir, exiting abnormally");
ZKAuditProvider.addServerStartFailureAuditLog();
ServiceUtils.requestSystemExit(ExitCode.UNABLE_TO_ACCESS_DATADIR.getValue());
} catch (AdminServerException e) {
LOG.error("Unable to start AdminServer, exiting abnormally", e);
System.err.println("Unable to start AdminServer, exiting abnormally");
ZKAuditProvider.addServerStartFailureAuditLog();
ServiceUtils.requestSystemExit(ExitCode.ERROR_STARTING_ADMIN_SERVER.getValue());
} catch (Exception e) {
LOG.error("Unexpected exception, exiting abnormally", e);
ZKAuditProvider.addServerStartFailureAuditLog();
ServiceUtils.requestSystemExit(ExitCode.UNEXPECTED_ERROR.getValue());
}
LOG.info("Exiting normally");
ServiceUtils.requestSystemExit(ExitCode.EXECUTION_FINISHED.getValue());
}

protected void initializeAndRun(String[] args) throws ConfigException, IOException, AdminServerException {
QuorumPeerConfig config = new QuorumPeerConfig();
if (args.length == 1) {
config.parse(args[0]);
}

// Start and schedule the the purge task
DatadirCleanupManager purgeMgr = new DatadirCleanupManager(
config.getDataDir(),
config.getDataLogDir(),
config.getSnapRetainCount(),
config.getPurgeInterval());
purgeMgr.start();

if (args.length == 1 && config.isDistributed()) {
runFromConfig(config);
} else {
LOG.warn("Either no config or no quorum defined in config, running in standalone mode");
// there is only server in the quorum -- run as standalone
ZooKeeperServerMain.main(args);
}
}

public void runFromConfig(QuorumPeerConfig config) throws IOException, AdminServerException {
try {
ManagedUtil.registerLog4jMBeans();
} catch (JMException e) {
LOG.warn("Unable to register log4j JMX control", e);
}

LOG.info("Starting quorum peer");
MetricsProvider metricsProvider;
try {
metricsProvider = MetricsProviderBootstrap.startMetricsProvider(
config.getMetricsProviderClassName(),
config.getMetricsProviderConfiguration());
} catch (MetricsProviderLifeCycleException error) {
throw new IOException("Cannot boot MetricsProvider " + config.getMetricsProviderClassName(), error);
}
try {
ServerMetrics.metricsProviderInitialized(metricsProvider);
ServerCnxnFactory cnxnFactory = null;
ServerCnxnFactory secureCnxnFactory = null;

if (config.getClientPortAddress() != null) {
cnxnFactory = ServerCnxnFactory.createFactory();
cnxnFactory.configure(config.getClientPortAddress(), config.getMaxClientCnxns(), config.getClientPortListenBacklog(), false);
}

if (config.getSecureClientPortAddress() != null) {
secureCnxnFactory = ServerCnxnFactory.createFactory();
secureCnxnFactory.configure(config.getSecureClientPortAddress(), config.getMaxClientCnxns(), config.getClientPortListenBacklog(), true);
}

quorumPeer = getQuorumPeer();
quorumPeer.setTxnFactory(new FileTxnSnapLog(config.getDataLogDir(), config.getDataDir()));
quorumPeer.enableLocalSessions(config.areLocalSessionsEnabled());
quorumPeer.enableLocalSessionsUpgrading(config.isLocalSessionsUpgradingEnabled());
//quorumPeer.setQuorumPeers(config.getAllMembers());
quorumPeer.setElectionType(config.getElectionAlg());
quorumPeer.setMyid(config.getServerId());
quorumPeer.setTickTime(config.getTickTime());
quorumPeer.setMinSessionTimeout(config.getMinSessionTimeout());
quorumPeer.setMaxSessionTimeout(config.getMaxSessionTimeout());
quorumPeer.setInitLimit(config.getInitLimit());
quorumPeer.setSyncLimit(config.getSyncLimit());
quorumPeer.setConnectToLearnerMasterLimit(config.getConnectToLearnerMasterLimit());
quorumPeer.setObserverMasterPort(config.getObserverMasterPort());
quorumPeer.setConfigFileName(config.getConfigFilename());
quorumPeer.setClientPortListenBacklog(config.getClientPortListenBacklog());
quorumPeer.setZKDatabase(new ZKDatabase(quorumPeer.getTxnFactory()));
quorumPeer.setQuorumVerifier(config.getQuorumVerifier(), false); //将id加入到map中
if (config.getLastSeenQuorumVerifier() != null) {
quorumPeer.setLastSeenQuorumVerifier(config.getLastSeenQuorumVerifier(), false);
}
quorumPeer.initConfigInZKDatabase();
quorumPeer.setCnxnFactory(cnxnFactory);
quorumPeer.setSecureCnxnFactory(secureCnxnFactory);
quorumPeer.setSslQuorum(config.isSslQuorum());
quorumPeer.setUsePortUnification(config.shouldUsePortUnification());
quorumPeer.setLearnerType(config.getPeerType());
quorumPeer.setSyncEnabled(config.getSyncEnabled());
quorumPeer.setQuorumListenOnAllIPs(config.getQuorumListenOnAllIPs());
if (config.sslQuorumReloadCertFiles) {
quorumPeer.getX509Util().enableCertFileReloading();
}
quorumPeer.setMultiAddressEnabled(config.isMultiAddressEnabled());
quorumPeer.setMultiAddressReachabilityCheckEnabled(config.isMultiAddressReachabilityCheckEnabled());
quorumPeer.setMultiAddressReachabilityCheckTimeoutMs(config.getMultiAddressReachabilityCheckTimeoutMs());

// sets quorum sasl authentication configurations
quorumPeer.setQuorumSaslEnabled(config.quorumEnableSasl);
if (quorumPeer.isQuorumSaslAuthEnabled()) {
quorumPeer.setQuorumServerSaslRequired(config.quorumServerRequireSasl);
quorumPeer.setQuorumLearnerSaslRequired(config.quorumLearnerRequireSasl);
quorumPeer.setQuorumServicePrincipal(config.quorumServicePrincipal);
quorumPeer.setQuorumServerLoginContext(config.quorumServerLoginContext);
quorumPeer.setQuorumLearnerLoginContext(config.quorumLearnerLoginContext);
}
quorumPeer.setQuorumCnxnThreadsSize(config.quorumCnxnThreadsSize);
quorumPeer.initialize();

if (config.jvmPauseMonitorToRun) {
quorumPeer.setJvmPauseMonitor(new JvmPauseMonitor(config));
}

quorumPeer.start();
ZKAuditProvider.addZKStartStopAuditLog();
quorumPeer.join();
} catch (InterruptedException e) {
// warn, but generally this is ok
LOG.warn("Quorum Peer interrupted", e);
} finally {
if (metricsProvider != null) {
try {
metricsProvider.stop();
} catch (Throwable error) {
LOG.warn("Error while stopping metrics", error);
}
}
}
}

// @VisibleForTesting
protected QuorumPeer getQuorumPeer() throws SaslException {
return new QuorumPeer();
}

}
